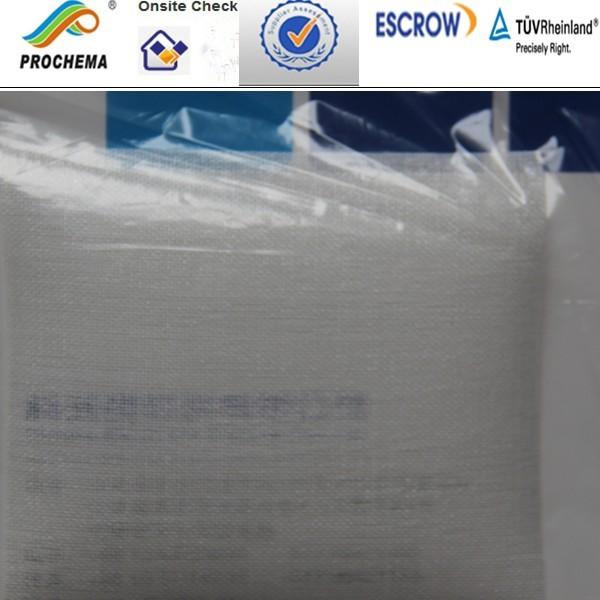

biological fuel cell membrane, biofuel cell membrane N41x

N -417 ,4110 membrane

Perfluorinated ion

exchange membrane which hybrid with

high strength PTFE fabric.

Introduction :

N 41X is hybrided by high strength PTFE fabric and Perfluorinated ion exchange Resin. Thus our film has many outstanding features. It not only has the high tensile strength ,high selection,isotropy,high conductance;but also has the effect of self-humidifying and with low Linear Expansion. It has the good performance in Fuel Cell ,Vanadium batteries,electrolyzer,

electrodialysis,elect-chemical sensors as the solid electrolyte film .

Thickness and Weight :

Type	Thickness (um)
N -417	250
N -4110	350

X can be 5-20mil , Special thickness and size ,please contact1mil=25.4um

Size:Length x width : 500x500 600x600 800x800mm

N series Performance :

Performance	Numerical	Method
Tensile strength	40MPa (23oC,50% RH,Isotropy)	ASTMD885
Tensile Modulus	780MPa(23oC,50% RH,Isotropy)	ASTMD882
Linear Expansion	1%( 23oC,from50%RH,to water soaked)	ASTM756
Water Uptake	50±5% (100oC,1h)	ASTMD570
Conductivity	0.1S/cm	25oC,zawodzinski
Equivalent weight	950g/eq	Test method designed by Factory

Main usage :

Used for electrolysis field : higher intensity of biological fuel cells , watertreatment, chlor-alkali producing etc.

Max size :1200x2400mm .

If MOQ gets to 5 sqm, size can be customised.
