LED Glass Film 50ohm ito film

Product Categories

Mianyang Prochema Commercial Co.,Ltd.

Contact Now

Ask Lasest Price
Brand Name :	Prochema
Certification :	ROHS
Model Number :	PROX-50 ITO FILM
Price :	USD23/sqm
Delivery Time :	within 7 days after receiving your payment
Payment Terms :	T/T,L/C at sight,western union,paypal
Supply Ability :	20000sqm per month

Add to Cart

Trial Kit For LED Glass/Flexible LED Film *ITO Film: 50ohm0.175mm1200mm10m Silver Paste: 20g Copper foil: 1 roll LED light: 50pcs**

Trial Kit For LED Glass/Flexible LED Film

ITO Film: 50ohm*0.175mm*1200mm*10m

Silver Paste: 20g

Copper foil: 1 roll

LED light: 50pcs

Model	Resistance	Thickness	Roll width	Application
PROX-50	50-60ohm/sq	125/175micron	600/1200mm	LED Glass/LED film/Decorative led glass film

lina

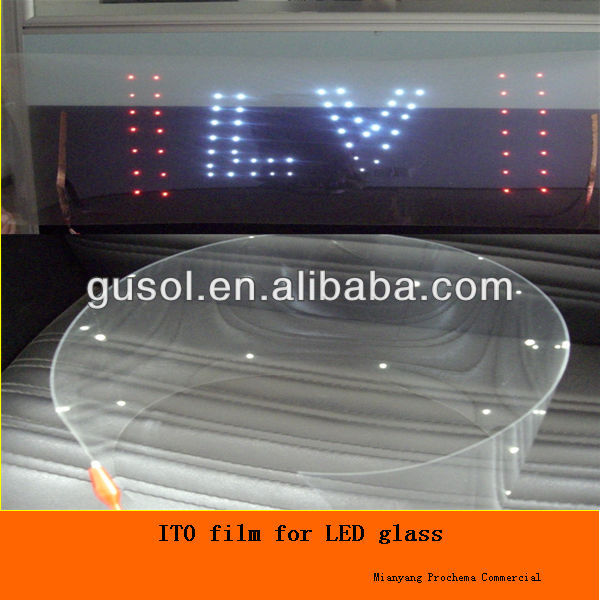

ITO Film For LED Film show

ITO Film For LED Film show

LED glass is a high-tech product which is inserted with led luminous source to make different type and pattern.

Due to stable resistance and high transparency, PROX-50 is quite suitable for producing LED FILM GLASS.

Prochema is specializing in ito film production for 11 years

Prochema is specializing in ito film production for 11 years

Item	PROC-14	PROX-35	PROX-50	PROX-100	PROX-200	PROX-430
Thickness (microns)	50/125/175	125/175	125/175	50/100/125/175/188	125/175	188
Width (mm)	1200	600,1200	600,1200	600,1200,1900	600,1200	406
Resistance (ohm/sq)	12-15	30-40	50-60	90-110	190-220	400-450
Application	EMI shielding, Transparent Electrode		Electroluminescent printing/EL panel, EMI shielding, Anti-static, E-paper, touch sensing, Capacitive touch key, PDLC glass film ITO Heating Pad		Electrode, EL printable lamps	Touch screen, Sensing

Product Warranty

Product Warranty

1.ROHS certificate and MSDS document available;

2.Ten years production experience to assure 100% high quality;

3.Factory competitive price, directly supply to world top 500 companies;

4.Strict test before shipping;

5.Best discount freight cost to assure quick delivery;

6.Responsible for each batch;

7.Good after-sale service, customers' feedback are especially welcome.

Technical Data For 50ohm/sq ITO PET FILM

Technical Data For 50ohm/sq ITO PET FILM

Model:PROX-50 (50ohm/sq,125 or 175micron)

Property		Units	Data	Test Method
1	Visible Light Transmission	%	≥80	Spectrophotometer
2	Hue (b value)	-	0≤b≤4	Spectrophotometer
3	Haze	%	≤1.5	Haze Meter
4	Thickness	micron	125 or 175	Spiral Micrometer
5	Square Resistance	ohm/sq	45-55	Four Probe Resistivity Meter
6	Resistance Uniformity		+5	Four Probe Resistivity Meter
7	Surface Free Energy	J.m.2	≥30	Angle Contact Metering System
8	Coating Adhesion	%	≤2	250# Tape Tearing For Three Times
9	Heat Shrinkage
