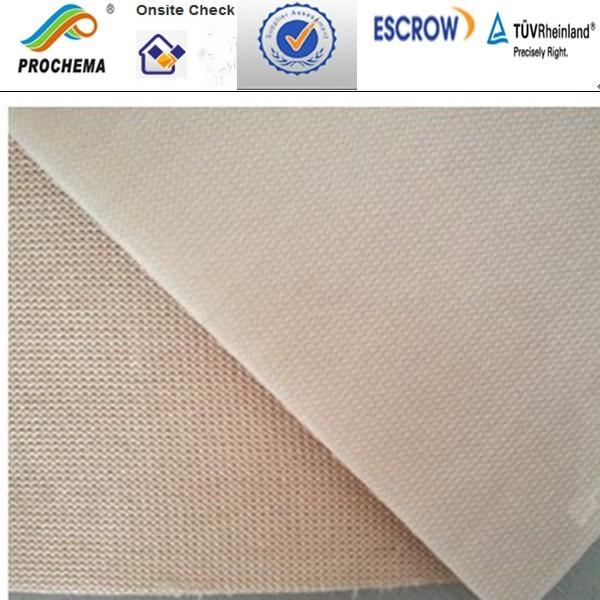

PFA Sheet, PFA composited
sheet
The sheet is Using equipment imported from Japan, the United States
imported glass fiber raw material, adopting extrusion molding
process makes the PFA in molten state calender, with glass fiber
reinforced composite forming.
Features:
Corrosion resistance
High temperature resistant
Not sticky
Glass fiber, and high strength
Easy processing
Application:
Field of chemical industry, semiconductor tank lining
Specifications:
Length x 1200 mm (length can be specified by the customer)
PFA plate thickness > 2.3 mm
Usage
Agglutinant
electric iron board producing
F4 wax cloth belt, transmission belt combining adhibiting
F4 copper board inner adhibiting
Window
Electroanalysis
High temperature tape raw material
Capacitance raw material
Biology temperature protecting material
Non-metal compensator in thermo-eletric plant
Flameproof electric machinery
Surface protecting material
Characteristic
Good adherence .
Good adherence to mental.
High and low temperature preservation
-200~260oC high temperature intensity better than F4
No-begriming ,and no-stagnant in tube
Touching point angle=114oC
Security and insulation
Under 60HZ-60MHZ high and low temperature , permittivity is 2.1.
If firing, and will still insulate .
Volume resistance more than 1018ohm.m
Surface resistance more than 2 X 1013ohm
Voltaic Arc more than 165 seconds insulation
High diaphaneity
Good penetrability in ultraviolet radiation,and lowest refraction
coefficient
Technical index of PFA:
Index name
|
Unit
| Figure |
sheet.rod product | tubefilm product |
Density | g/cm3 | 2.12£2.17 |
Tensile strength | Mpa | 22 | 15 |
Elongation ratio | % | 280 | 260 |
Temperature range | oC | -200-260 |
Dielectric strength | Kv/mm | 15 |
Specification:
Standard:
0.5mm to 150mm regular size : 150x300 mm 200mmx200mm 300x300mm
400mmx400mm 500x500mm
0.5-4mm Max width 1200mm
Application:
Coating cable
Valve and pump linings
Insulating bushings
Release applications
Pharmaceutical industry
Semi-conductor industry
Lining Bearing pads, anticorrosive seals, electrical insulation,
inner tube lining , anticorrosive gasket,fireproof sheet, High-low
temperature sheet, semiconductor protected parts
Technology requirements:
Surface smooth, flat, no pinhole, no bubble, no impurity, edge
smooth and flat
Thanks for your interest in our material and service. To get quick
quotation and response,please
kindly mention below information in your inquiry:
1.Your application
2.Thickness & width
3.Color
4.Quantity
5.Your company information
Once we get your detail inquiry,we guarantee to contact you within
12 hours with efficient information.
Thank you for your cooperation.
Contact:
Mr. Michael zhang market2 at prochema.cn Skype:michaelprochema
Google talk:zch5548at gmail.com Trademanager:cn200020719
QQ:676245587
Note:
We can offer you pure PFA sheet ,and can also offer you PFA sheet
with fiber
