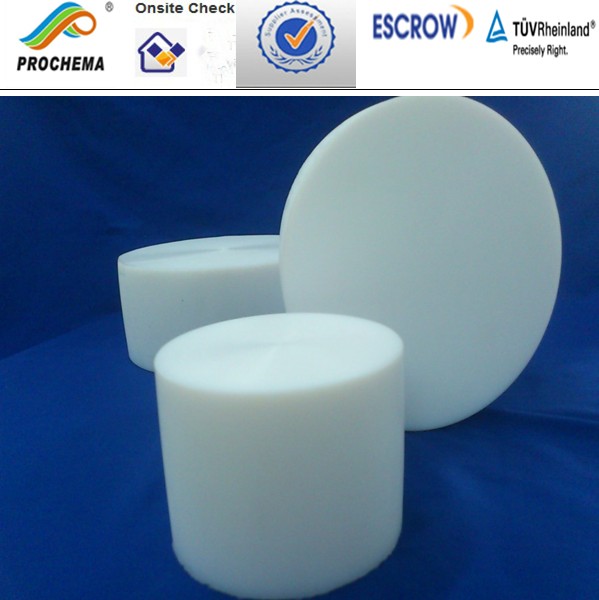

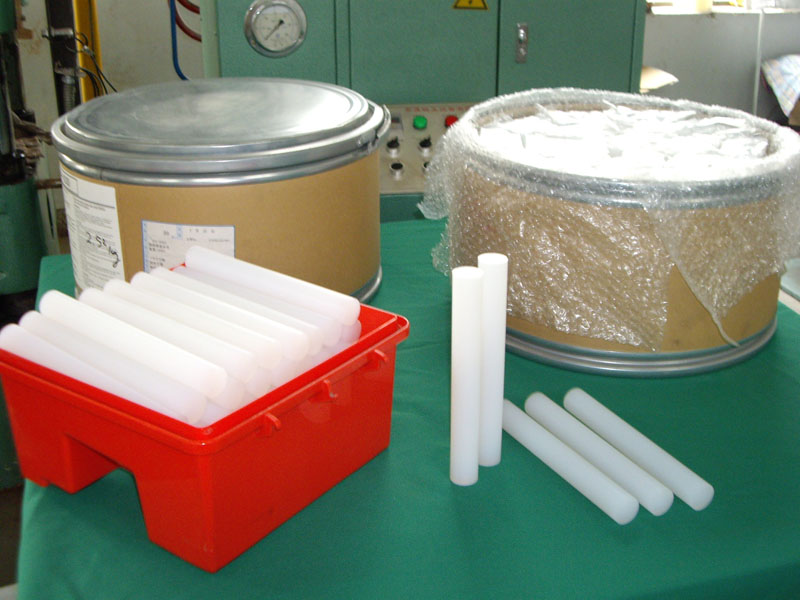

FEP rod, FEP welding rod
FEP rod is made from FEP resin and prepared by the technology of
extrusion and molding. It can be machined into various sealing
parts and electric components. It can be used at the temperature
range of -80 through +200
application:
1.Petrochemical and chemical processing
2.Electrical applications
3.Semi-Conductor Industry
4.Food, Beverage and Pharmaceutical industries
5.Laboratory applications
Lining Bearing pads, seals, and electrical insulation Lining
Bearing pads, seals, and electrical insulation, liner tube,
insulator tubing.
It is mainly used to weld kinds of FEP products .
Characteristic
1. High and low temperature preservation
2. -200~200oC high temperature intensity better than F4
3. No-begriming ,and no-stagnant in tube
4. Security and insulation
5. Under 60HZ-60MHZ high and low temperature , permittivity is 2.1
6. If firing, and will still insulate
7. Voltaic are>165 seconds insulation
8. Erode preservation
9. Under high temperature, fluorin and alkali will reaction with
PFA, no reaction with other acid.
10. Low water absorption<0.01%
11. No firing in air( oxygen index>95 vol.%)
Properties :
FEP |
Items | Properties | Indicators |
physical properties | specific gravity(g/cm³) | 2.12~2.17 |
meltingpoint(¡C) | 207 |
melt index(g/10min) | 5~25 |
electrical properties | tensile strength(Mpa) | 27~29 |
elongation at break(%) | 250~300 |
rigidity(SH) | D60~70 |
coefficient of kinetic friction | 0.2 |
mechanical properties | volume resistivity(CM) | >=10 18 |
insulated breaking voltage(0.2mm)/(mv/m) | 20 |
dielectric constant 1MHz | 2.1 |
dielectric loss angle tangent 1MHz | <=0.003 |
It is predominantly used in the constchemicalruction/fabrication of
semiconductor wafer baskets, aggressive baths/wet benches & custom
made inert liquid enclosures.

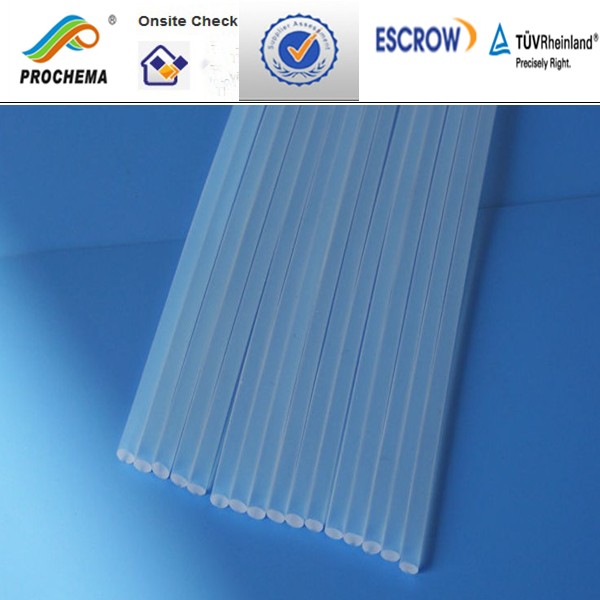

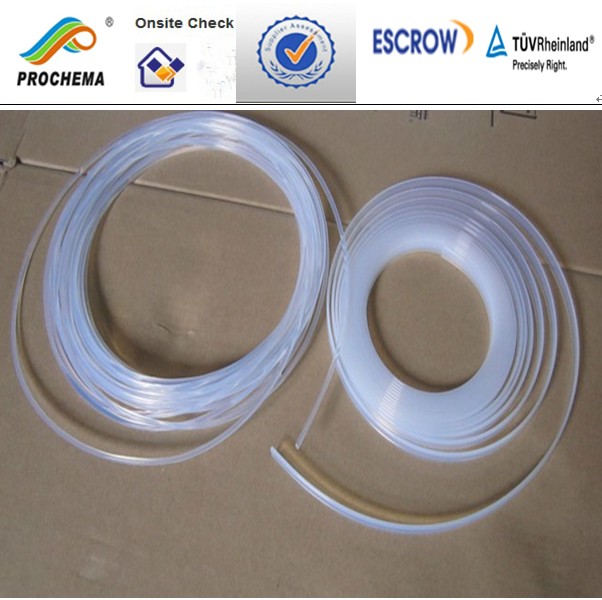

FEP welding rod include: Dia3 to 5mm round rod ,flat solder strip
2.5x14mm
Specification and usage of FEP rod:
Name | Diameter(mm) | Length(mm) | Application |
Molded rod | 5-20 | 200 | Anti-corrosion, sealing, antifriction, electric insulating parts |
25-100 | 100-150 |
FEP rods are compatible to corresponding standard. |
Color and sizes can be customiszed . Surface treated can be done
(chemical or plasma treated)
Package :
Plastic bag &carton . Customized is acceptable
For quotation,please kindly contact us with below detail information to speed up
our service:
1.Diameter
2.usage
3.Color
4.Quantity
Once we get your detail inquiry,we will reply you in 10 hours.
