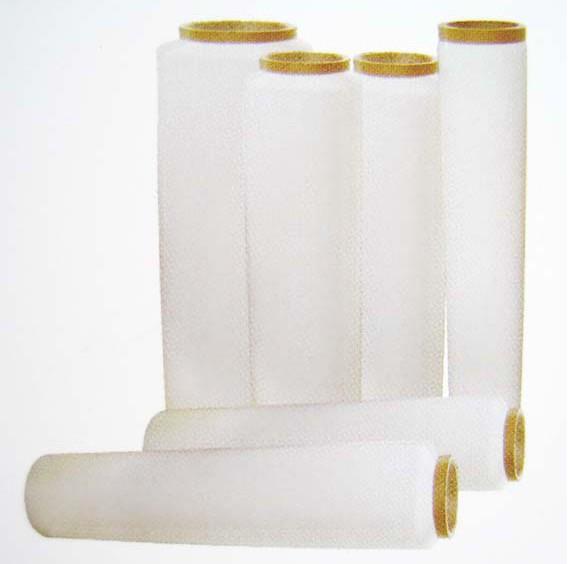

Composite Thick Polyester Insulation film / 0.5-1.1mm

Composite Thick Polyester Insulation Film / 0.5-1.1mm Thick


Description and Application:

Compound Polyester film is Compounded with polyester film, and class F adhesive. It has the feathrue of non-creepage, high level of withstand voltage property, and Anti-aging property. Widely apply to insulating sleeves of dry-type transformer, which is the idea substitution of fiberglass fabric insulation sleeves,could be used on motor and other electrical appliances for slot insulation, interturn insulation and gasket insulation as well.


Package and Storage:

Product supply in rolls, packed in carton after sealing with reinforced plastic film bag. store it in room temperature inviornment which is ventilative and desiccative. Place it erected. Never to be close to fire source, heater and avoid of projectivity by sunshine. The storage duration is 12 monthes since products left the factory.


The existing standard width of 800mm,1000mm,1100mm,1200mm are available, could produce according to customers demands as well.


Technical index:

No

Names of index

Unit

Index value

1

Standard thickness

mm

0.5

1.1

2

Thickness tolerance

%

10

10

3

Quantification

g/m2

700

1460

10

Quantification tolerance

%

5

5

11

Film thickness

mm

0.25

0.35

12

Breakdown voltage

KV

¡Ý25

¡Ý30

13

Appearance


smooth surface,level off£¬withoutbubble,delamination,spot,fold,impurity, and no surface damage when decoiling

14

Processability


Without cracking and delamination when shearing

15

Beheatedinfluence


155¡C/24h,without delamination,bubble and cracking

Product Tags:

Polyester film



PET film



PET thick film
