PVDF film, PVDF sheet, PVDF rod, PVDF tube
PVDF (polyvinylidene fluoride) is a kind of light fluoride
material, with the working temperature ranging from -70 to 150 . It
features superior corrosion resistance, mechanical property,
electrical insulating property, low friction coefficient,
weatherability, and radiation tolerance. Moreover, the tensile
strength is two times higher than PTFE, the compressive strength
six times higher than PTFE, and the abrasion resistance similar to
nylon. PVDF film Properties Color:white ,transparent Surface :Mat , coronatreated - Perfect weather fastness and UVioresistance aging ,over 3000hours
long life - Perfect flat film surface ,easy for second progress.
- Lower moisture transmittance
- outstanding bond&compound property ,especially good compound
effect with PET film,sheet. And EVA film . - Perfect mechanical property ,especially tearing strength of
transverse and portrait . - High cost performance Application: Solar cell back sheet,constructure,greenhouse,semiconductior

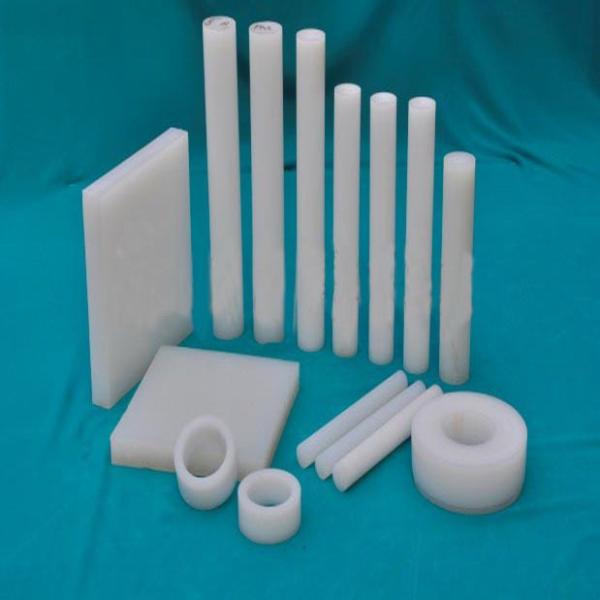

sealing and packing,electric,chemical,advertisement etc. Packing:air bubble film damping packing Specification : Thickness:20-50micron Width : 200-1200mm Roll length :100-2000m , and can be customized Storage condition:ventilate ,dry ,moistureproof ,heetproof ,prevent pressure. PVDF sheet, PVDF rod, PVDF welding rod PVDF plates, rods are formed by the die pressing or extrusion of
polyvinylidene fluoride resin. It can be widely used as the
corrosion-resistant materials, abrasion-resistant materials,
corrosion-resistant equipment linings, transparent viewing mirrors,
vacuum sealing materials, electrical and electronic components, and
motor or instrument parts, etc. Main Performance 1, appearance: uniform texture, smooth surface; color was white. 2, the mechanical properties with the following table Item | unit | data | density | g/cm3 | 2.12-2.17 | tensile strength | Mpa | >=35 | elongation at break | % | >=250 | hardness | shores hardness | D70-D80 |
PVDF Sheet Size: Thickness:1-40mm Width:100-1000mm Length:100-2000mm PVDF welding rod: Dia3mm,4mm and 5mm
|
PVDF Tube Size:Dia6mm to 225mm Length:1000 to 5000mm For sampling and quotation, please kindly contact us with below
