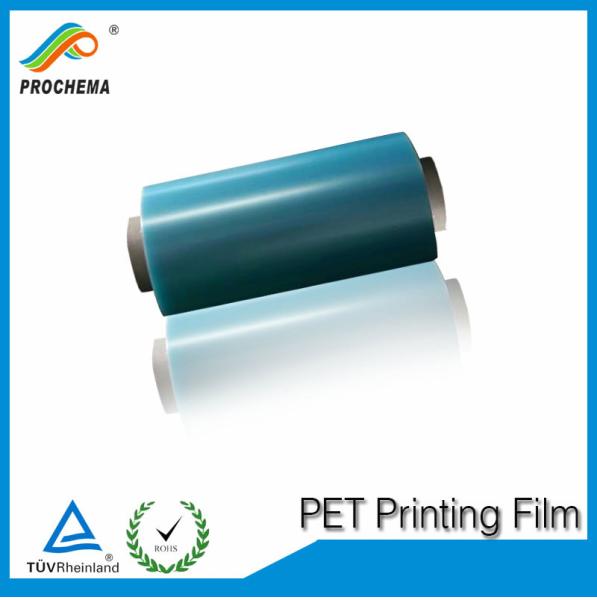

V150 velvet hardcoated PET film

Ask Lasest Price
Brand Name :	Prochema
Certification :	Rohs
Model Number :	Autotex V150 replacement
Price :
Delivery Time :	within 2 weeks
Payment Terms :	T/T
Supply Ability :	500000sqm per month

Add to Cart

Product Details
Company Profile

V150 velvet hardcoated PET film

V150 velvet hardcoated PET Film for Membrane Switch

Applicable for IMD,IML

Product Description

PET printing film with excellent rub resistance,scratch resistance and chemical testing resistance.

And with long life-span and buckling resistance on the switch panel.

easy convex and easy printing on the transparent window, with good heat stability.

When printing several kinds color, it can solve topping problem. The Material printing surface has been dealt with special chemical treatment, so with excellent adhesion to printing ink.

Type	A Series	F Series	V Series	S Series
Surface	Single Velvet Printing Film	A Perfect Substitute for Autotype Brand		Transparent Single Brush PET Film, specially for IMD/IML technic
Remak	Blue printing surface protective film
Application	Membrane switch, Instrument panel,Nameplate, Household appliance panel,remote control switch

Main advantages:

l Excellent performances of friction resistance, scratch resistance and chemical resistance.

l Long lifespan and bending resistance

l raisable

l Good thermostability, easy to print , free of overdrying while processed with multicolors.

With window liquid easy open clear window

l With special chemical treatment of printing surface, it owns strong adhesion.

Properties:

Test methods	Experiment Methods		Propertities
Test methods	Experiment Methods		N60	60A	N30
Surface hardness	JIN-K-5400	Pencil Rigidity Steel grit brush	2h few	2h few	2h few
Adherence		adhesive	100/100	100/100	100/100
Waterproof	1h	Boiling	0	0	0
Temperature cycling	-20~~80°C	Heating	0	0	0
Weather fastness	300h	Climate Test	0	0	0
Mechanical Properties	JIS-C-2318	tensile strength (kgf/15mm)	MD33 TD30	MD33 TD30	MD33 TD30
	JIS-C-2318	Tensile degree / %	125 130	125 130
	JIS-P-8112	collapse strength /(kgf/a)	16.50	16.50
Optical Properties	JIS-K-7105	Haze degree	55.20	52.90	32.20
Optical Properties	JIS-K-7105	Light transmittance	90.00	91.00	90.00

Applications:

• membrane switch,

• instrument panel,

• nameplate,

• household appliances panel,

• remote control.

Printing film

PET printing film

V150 velvet hardcoated PET film
