PFA transparent tube, PFA tube
We can also produce PFA square tube, PFA rectangle tube,
PFA sealing-end tube, PFA coil pipe, PFA rotary cutting tube
Introduction:
PFA tube is made from PFA resin and prepared by the technology of
thermoplastic extrusion and blowing.
It has non-sticking, heat-resistance, aging resistance, corrosive
resistance, non-flammability and good electric property. It can be
solid adhesive for PTFE and also a good adhesive
for laminating various materials. Its working temperature is up to
260 and is an ideal material for
circuit board and flat cable

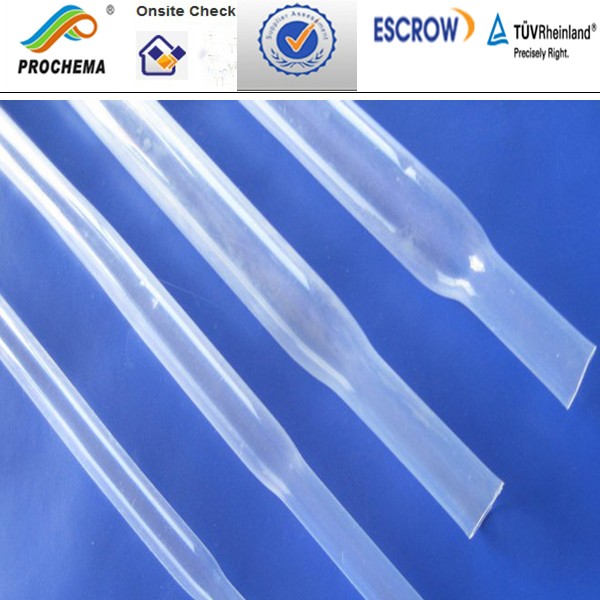

PFA transparent tube
USAGE
Used for Making the machine of making LCD used as the tube for
single core cable which only shine at the one end of the whole
cable used for Heat exchanger,smoke tubing used as the pipage of
upstair pure reagent
used as the pipage of all kinds of causticity medium (rigor
solvent) used as jacket of all kinds of wire and cable with
different frequency Used as the insulated tube in the slot of
latent oil electric instrument
used as the tube of air-condition wiring harness module complete
packing Fl plastic,the tube
for O sealing
PFA heat shrink tube
Office-work machine 's roll packing
paper machine's roll packing
printing and dyeing machine's roll packing
printing machine roll packing
insulated jacket
the main insulation of rotor of the electric instrument
water treatment
make the magma sample in the field of oil field ect.
UV lamp protecting
Technical index of PFA:
| Item | Value |
|
| General purpose | Electric purpose |
| Density g/cm3 | 2.12-2.17 | 2.12-2.17 |
| Temperature range oC | -200 -+260 | -200 -+260 |
| Longi&tray,shrink rate %> | 3.0 | 3.0 |
| Tensile strength Mpa >= | 14 | 14 |
| Elongation at break % <= | 175 | 175 |
| Tear Strength (N/m) >= | 4.9x104 | 4.9x104 |
| Dielectric Constanct (106Hz) |
| 2.15 |
| Dissipation Factor 106Hz <= |
| 1x10-3 |
| Volume resistance (Ω.m) |
| 1x1014 |
|
Dielectric Strength TH <=0.05mm Th 0.05-0.1mm M/V TH >= 0.1mm |
| 100 |
|
| 75 |
|
| 50 |
Specification
Dia ø1.5 --300mm,
Thickness: 0.015mm to 0.75mm.
Length :50mm to unlimited.
For UV lamp T4 T5 T8 T10 T12 , Thickness 0.2 to 0.5mm .
Color and sizes can be customiszed .
Thanks for your interest in our material and service. To get quick
quotation and
response,please
kindly mention below information in your inquiry:
1.Your application
2.Thickness & length ( heat shrinkable tube :please tell us the
post-shrink ID and thickness )
3.Color
4.Quantity
5.Your company information
Once we get your detail inquiry,we guarantee to contact you within
12 hours with
efficient information.
Thank you for your cooperation.
Contact:
Mr. Michael zhang market2 at prochema.cn Skype:michaelprochema
Google talk:zch5548 at gmail.com Trademanager:cn200020719
QQ:676245587

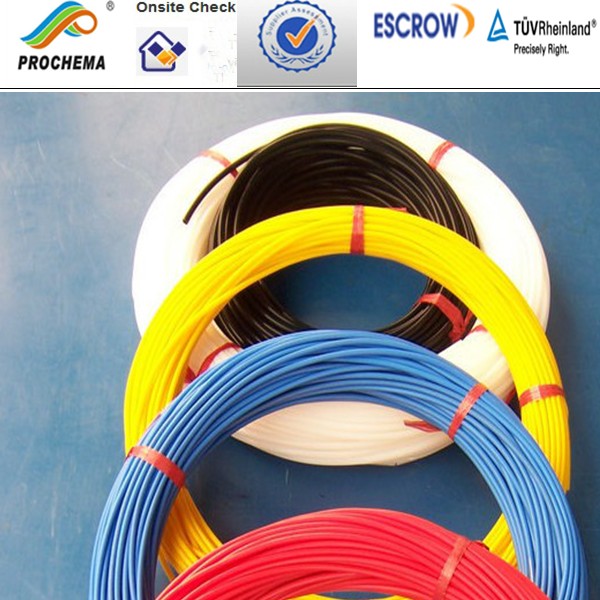

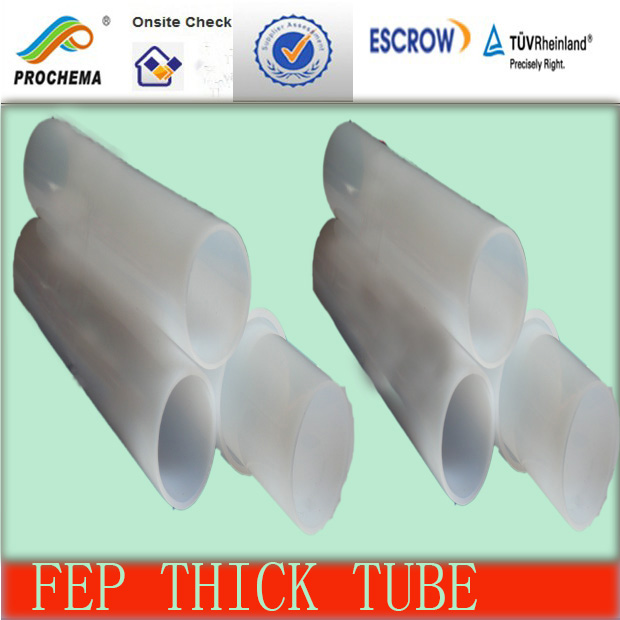

We can also offer your the following shape tubes:
