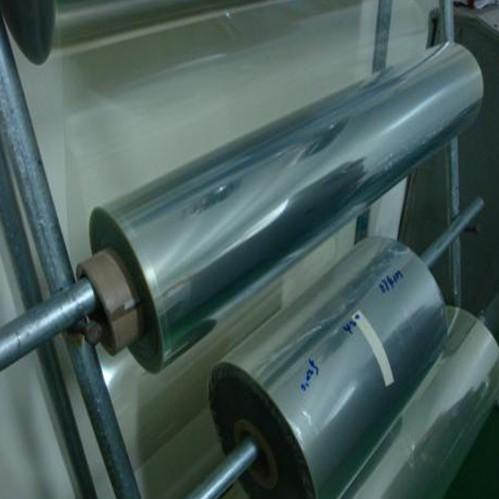

ITO film for EMI shielding

EMI shielding film

One of the applications of Mianyang Prochema's conductive film is EMI/EMR shielding.

Type 1: ITO PET film

Applications:

Electronic window, computer(LCD) screen,

computer house and security bureau walls,doors and windows shielding,

electric metering display,military display EMI/EMR shielding etc,

where meantime requires transparency.

Item	VLT	Ohm/sq	15MC-10GC shielding	Width	Thickness
EMS-F08	72%	14+/-4	20-25dB	<1200mm	125/175um
EMS-F02	69%	6+/-1	25-35dB	<1200mm	125/175um
EMS-35	75%	35+/-5	15-20dB	<1220mm	125/175 um
EMS-60	78%	60+/-10	5-15dB	<1220mm	125/175 um

Type 2: Extreme low resistance metal mesh PET film (Copper grid PET Film)

With special deposit technology, we deposit copper/nickel on optical BOPET film,to get very low resistance(<1 ohm/sq) while remain high transparency (>80%).

It is a good combination of conductivity and transparency film for HF EMI/EMR shielding,for example the house window nearby Radia station,

TV tower,high voltage transformer,mobile phone tower etc,and also an excellent EMI shielding material in hospital,military and machine houses.

We also can with this technology to make more durable capacitive touch keys pattern as per customer design .

ITO film for EMI shielding

Item	Value	Remarks
Basic thickness	75~100um	Thickness tester
VLT	>80%	Haze tester
Adhesion strengthn	500~1500gf/25mm	To glass
Adhesion between PET and conductive layer	Grade 2	GB-9286-88
Shielding	30MHz 60dB 100MHz 51dB 200MHz 45dB 500MHz 42dB 1000MHz 37dB	Based on SJ 20524-1995 Electronics military standard, tested by PLA(China Army)

Type 3: Metal sputtered polycarbonate film(UL VTM-0)

We produce the normal EMI shielding film, which adopt halogen-free flame resistant PC as base material. A Cu-Ni conductive layer is formed by vacuum magnetron sputtering technology. An extra black conductive coating can be done upon customer requirement.

This film is widely applied as electromagnetic shielding window for electronic equipment case, interior or vent of the cabinet ,horn mesh etc..

ITO film for EMI shielding
